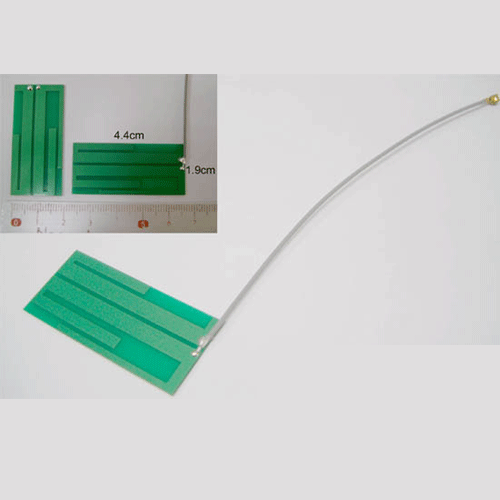

3G PCB Antenna
 글쓴이 : 최고관리자
조회 : 494

1. ELECTRICAL SPECIFICATION
- Antenna Type: PCB Antenna
- Frequency Range: 850-900/1710-1990MHz
- V.S.W.R: <3
- Impedance: 50ohm nominal
- Normal Gain: 0dBi
- Type of Radiation: Omni
- Admitted Power Radiation: 3W
- Electrical Wave: 1/4
- Connector: MMCX, MCX, SMA, IPEX...etc,
  and custom by customer demands
- Cable Length:RG178, RG316, 1.13dia...etc,
  and custom by customer demands
- OEM/ODM Spec is welcome!
2. MECHANICAL SPECIFICATION
- Operation Temperature: -20 ~ +60 degree
- Storage Temperature: -30 ~ +75 degree
