Detailed Product Description
GSM antenna with Screw mounting 5dBi,Frequency (MHz):850-1900/900-1800 ,Gain(dBi):5,
Antenna Length(mm): 170,Mounting : Screw

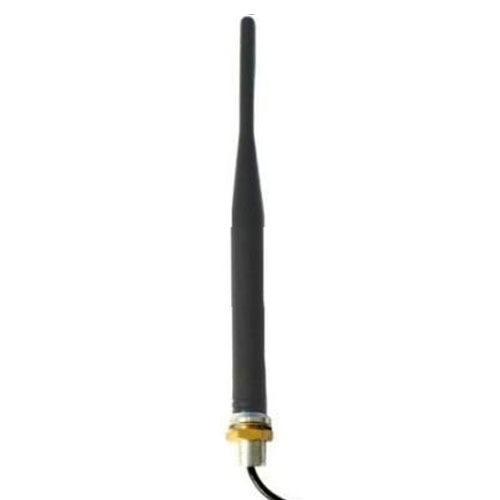

GSM antenna with Screw mounting 5dBi
Frequency (MHz):850-/960
Bandwidth(MHz):90/280
VSWR:1:1.5
Gain(dBi):2
Max Input power(W): 60
Input Impedance(Ω): 50
Polarization : Vertical
Antenna Length(mm): 170
Cable Length(m) 2 ,3,5 etc.
Cable Type: RG174
Connector : SMA/SMB/SMC/BNC/FAKRA/FME etc.
Mounting : Screw (Hole/Roof)
Housing: Black
Storage Temperature: -45'C to+75'C
Operating Temperature : -45'C to+75'C
