GSM Penta Band
 글쓴이 : 최고관리자
조회 : 446

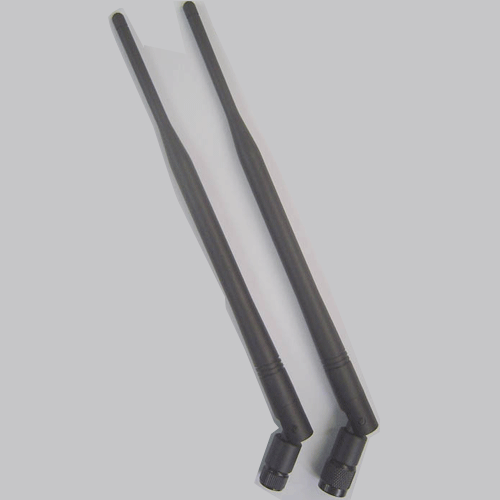

3G Antenna 824-960/1710-1990/2100MHz, with SMA / TNC
대량 주문시 별도 연락바랍니다.

1. ELECTRICAL SPECIFICATION
- Frequency Range: 824-960 / 1710~1990/2100MHz
  For 3G Application

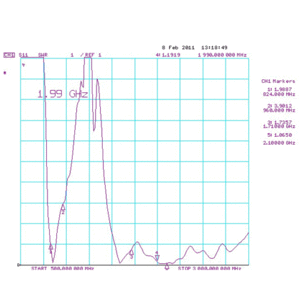

- V.S.W.R: <=2.0
- Impedance: 50ohm nominal
- Normal Gain: 2dBi
- Radiation: Omni
- Polarization: Vertical
- Electrical Wave: 1/4
- SMA / TNC Connector:
  SMA Male (Model: R07-S-A1), 24.2mm
  TNC Male (Model: R07-T-A1, 24.9mm
- OEM/ODM Spec is welcome!

2. MECHANICAL SPECIFICATION
- Antenna Cover: PU
- Color: Black
- Operation Temperature: -20 ~ +60 degree
- Storage Temperature: -30 ~ +75 degree
