400메가 7.8dB 옴니안테나입니다.
5개 이상 주문시 할인됩니다.
| Product Name |

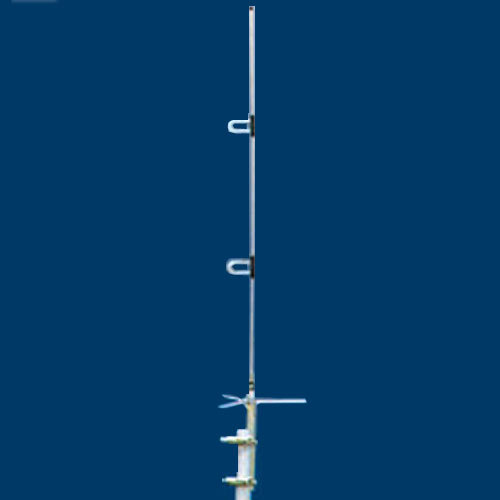

400MHz 7.8dBi Omni Directional Antenna |
| Description |
|
|
Electrical Specifications |
|
|
| Frequency Range–MHz |
400-480 |
| Bandwidth-MHz |
16 |
| Gain-dBi |
7.8 |
| Horizontal Beamwidth -° |
360 |
| Vertical Beamwidth -° |
17 |
| VSWR |
≤1.5 |
| Input Impedance -Ω |
50 |
| Polarization |
Vertical |
| Maximum Power -W |
100 |
| Connector |
N Female |
|
Mechanical Specifications |
| Dimensions-m |
1.5 meter |
| Weight-kg |
1.2 kg |
| Rated Wind Velocity-m/s |
60 |
| Remark |
the antenna is made of aluminium alloy |
|
