400메가 대역의 6.5dB패치안테나입니다.
해당 상품은 실외형이며, 폴대 거치형입니다.
5개이상 주문시 할인판매됩니다.

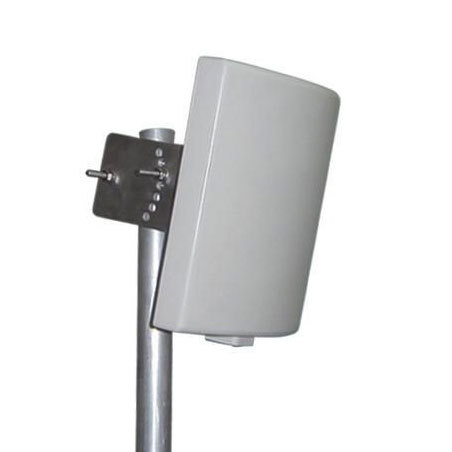

| Product Name |
Pole Mount Antenna |
| Description |
Applications:
450MHz band
SCDMA450 Cellular Systems
Multi-point Application
Point-2-point Application
Client Antenna
Features:
Superior Performance
Small Size, Low Profile
Lightweight ABS Radome
Outoor used
Integral N-Female Connector
|
|
Electrical Specifications |
|
|
| Frequency Range–MHz |
420-470 |
| Bandwidth-MHz |
20 |
| Gain-dBi |
6.5 |
| Horizontal Beamwidth -° |
120 |
| Vertical Beamwidth -° |
85 |
| F/B ratio-dB |
≥15 |

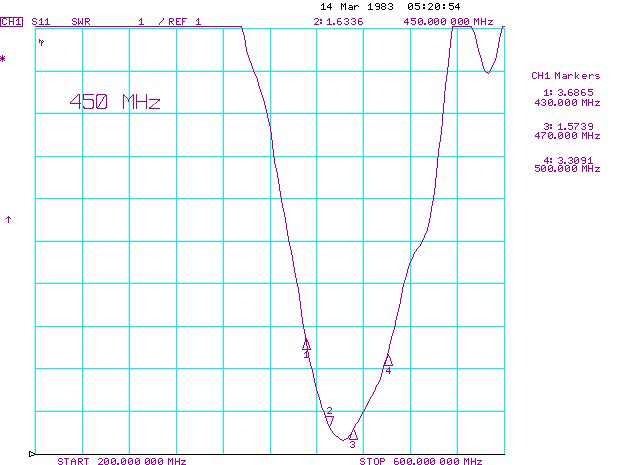

| VSWR |
≤1.5 |

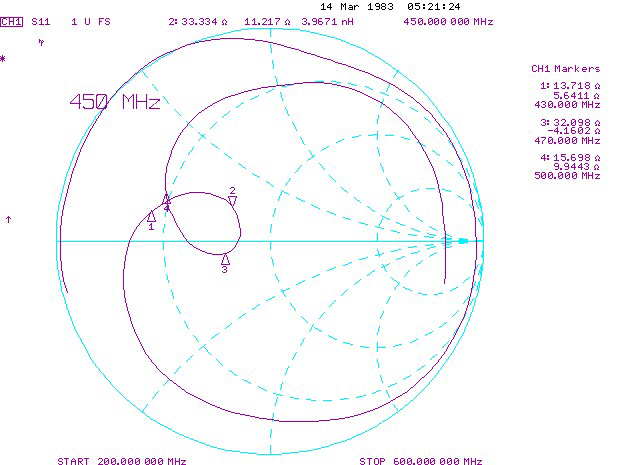

| Input Impedance -Ω |
50 |
| Polarization |
Vertical |
| Maximum Power -W |
100 |
| Connector |
N Female |
|
Mechanical Specifications |
| Dimensions-mm |
240×230×50 |
| Weight-kg |
0.35 |
|
