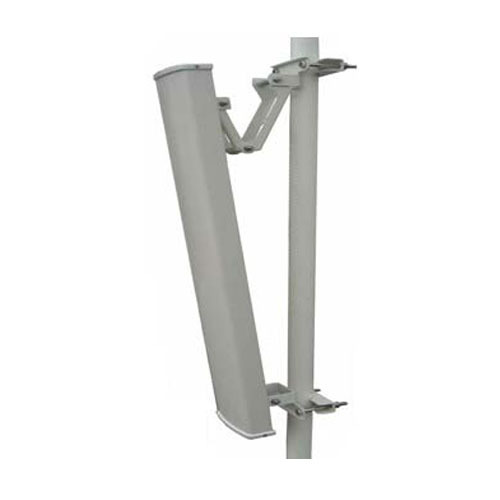

2.4GHz 120º  Dual Pol Sector Antenna

Freq. Range:   2400-2483.5MHz
Gain:                    16dBi
Polarization:       Dual linear
Horizontal Beamwidth:   120º
Vertical Beamwidth         9º
Cross-pol-isolatio:n:      >25dB
VSWR                          <1.5
Impedance                    50 Ω
Lightning Protection:   DC Ground
Max. Power:                200W
Connector:                 2-N Female
Dimension             890x180x60 mm
Weight:                         5 kg
Rated Wind Velocity:   60 m/s
Mounting Mast Diameter:   Φ50-110mm
Working Temperature:      -40℃- +60℃
