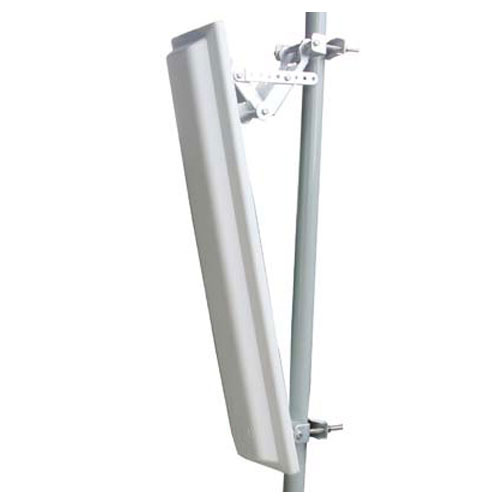

2.3-2.7GHz Dual Pol Sector Antenna

Freq. Range    2300-2700MHz
Gain                     2x16dBi
Polarization           V and H
Horizontal Beamwidth 90º
Vertical Beamwidth     9º
Cross-pol-isolation    >25dB
VSWR           <1.5Type; Max 2.0
Impedance                 50 Ω
Lightning Protection   DC Ground
Max. Power             200W
Connector              2-RP SMA
Dimension           700x140x50mm
Weight                       3 kg
Rated Wind Velocity  60 m/s
Mounting Mast Diameter Φ30-70mm
Working Temperature -40℃- +60℃
