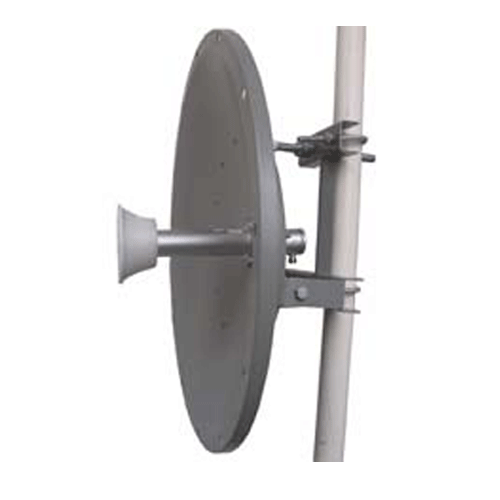

| 5.15-5.85GHz Dual-POL Dish Antenna |
| Frequency Range |
5150-5850 MHz |
| Bandwidth |
700 MHz |
| Gain |
29dBi |
| Horizontal Beamwidth |
5º |
| Vertical Beamwidth |
5º |
| F/B Ratio |
>35 dB |
| Isolation |
>28dB |
| V.S.W.R |
≤1.5Type;Max 2.0 |
| Nominal Impedance |
50 Ω |
| Polarization |
Vertical and Horizontal |
| Max. Power |
100 W |
| Connector |

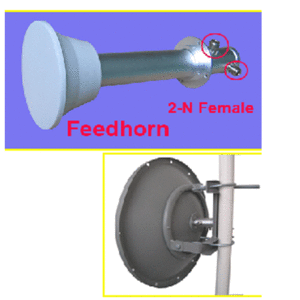

2-N Female |
| Diameter |
φ0.6 m |
| Weight |
5 kg |
|
