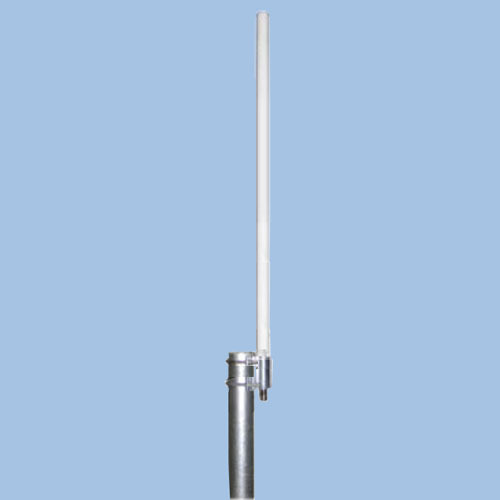

2.4/5GHz무지향옴니10dB
 글쓴이 : 최고관리자
조회 : 1,083

Applications
* 2.4GHz/5GHz WiFi system
* IEEE802.11a/b/g
* Point to multipoint application
Specifications
Model
Frequency Range-MHz 2400-2483 / 5150-5350/5350-5850
Gain-dBi
9
6
8
Vertical Beamwidth-°
10
22
10
VSWR
≤2
Impedance-Ω
50
Polarization
Vertical
Maximum Power-W
20
Connector
N female
Dimensions-mm
Φ25×930
Weight-Kg
0.35
Mounting Mast Diameter-mm
Φ40 to Φ50
