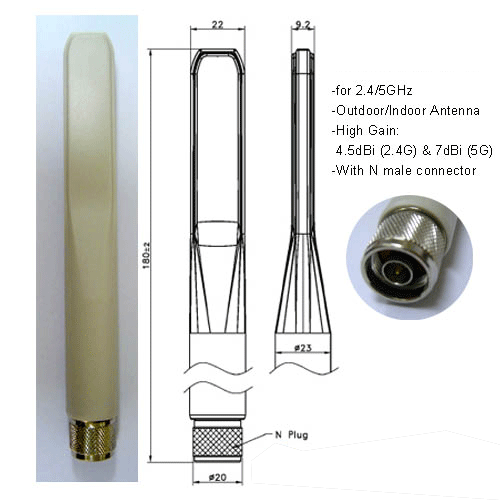

New!!! Indoor/Outdoor Antenna for 2.4/5GHz
1. ELECTRICAL SPECIFICATION
- Frequency Range: 2.4~2.5GHz & 4.9~5.825GHz
- V.S.W.R: <=2.0
- Impedance: 50ohm nominal
- Gain: 4.5dBi for 2.4GHz, 7dBi for 5GHz
- Radiation: Omni
- Polarization: Vertical
- Electrical Wave: 1/4
- N Male Connector (Brass)
-OEM/ODM Spec is welcome!
2. MECHANICAL SPECIFICATION
- Antenna Cover: ABS+PC
- Color: Light Grey
- Operation Temperature: -20 ~ +60 degree
- Storage Temperature: -30 ~ +75 degree

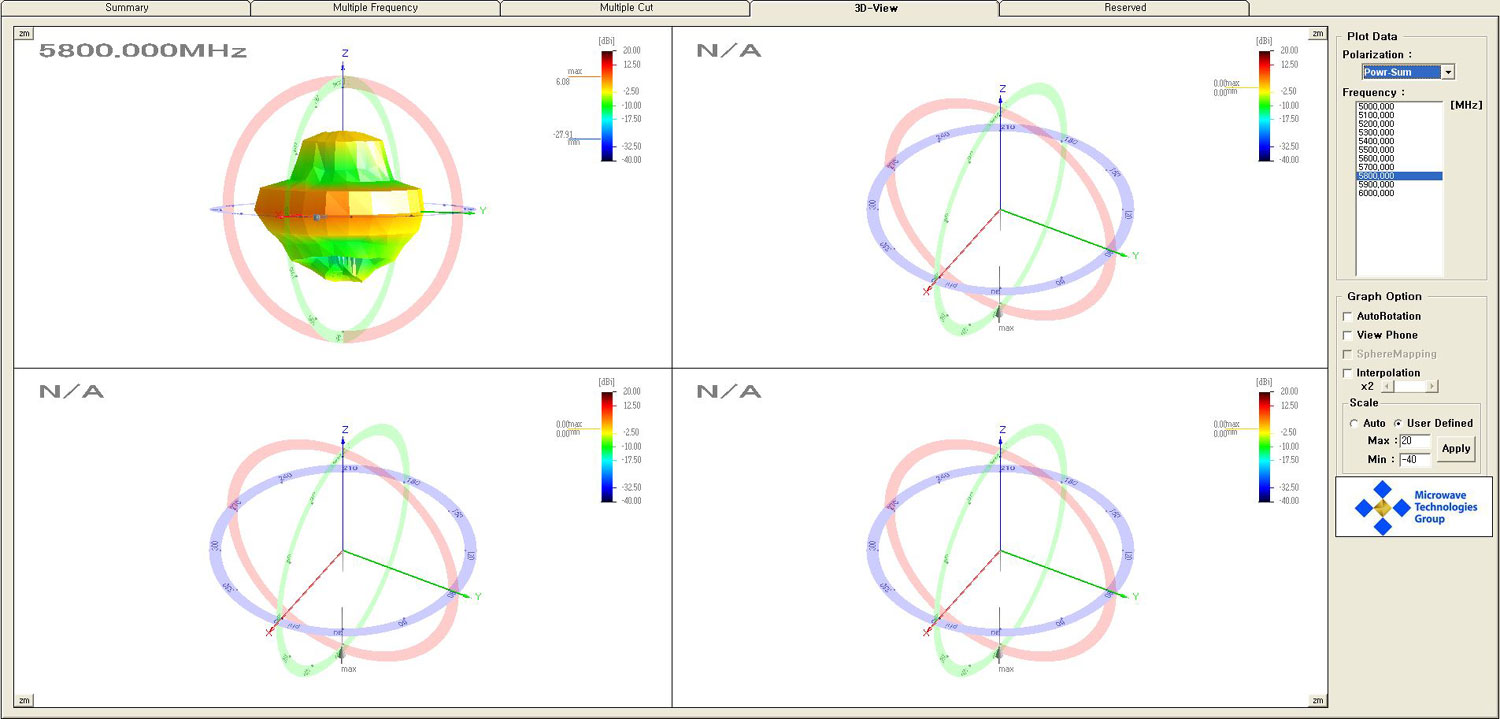

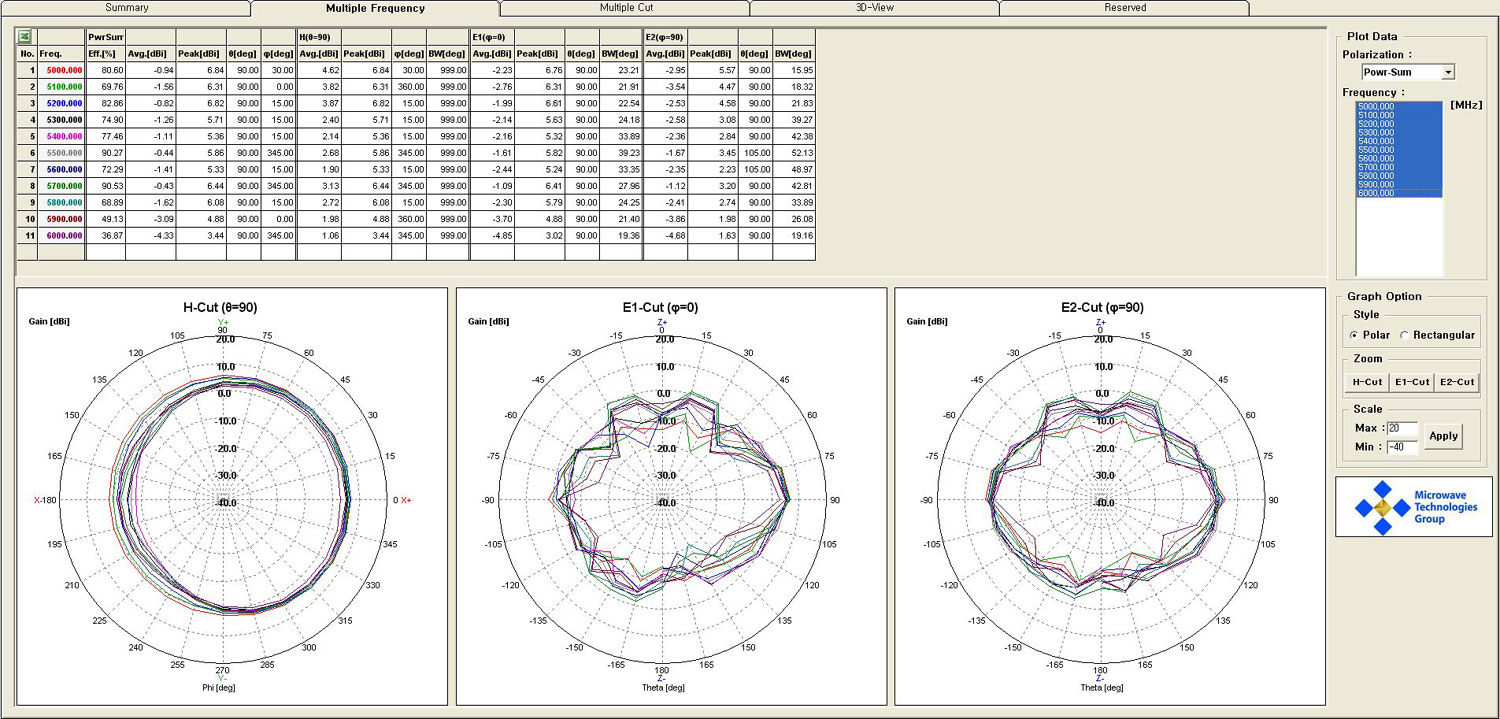

현재 아래와 같이 5GHz대역에만 측정자료가 있습니다.
조만간 2.4GHz대역에서도 측정하여 자료 올리겠습니다.
