WLAN Integrated Antenna with Enclosure
Freq. Range 2400-2483.5 MHz
Bandwidth 83.5 MHz
Gain 20 dBi
Horizontal Beamwidth 16º
Vertical Beamwidth 16º
F/B ≥28 dB
VSWR <1.5Type; 1.8Max
Nominal Impedance 50 Ω
Polarization Horizontal or Vertical
Max Power 100 W
Connector SMA Female
Antenna Dimension 371x371x80mm

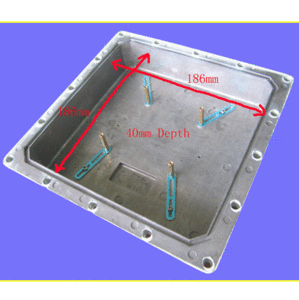

Enclosure Inner Dimension 186x186x40mm
Radome Material Anti-UV ABS
Enclosure Material Aluminum Die Cast
Weight 2.5kg

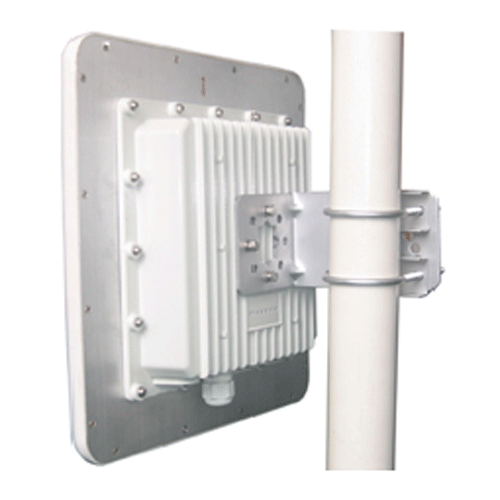

Mounting mast diameter Ø30 to 50mm
