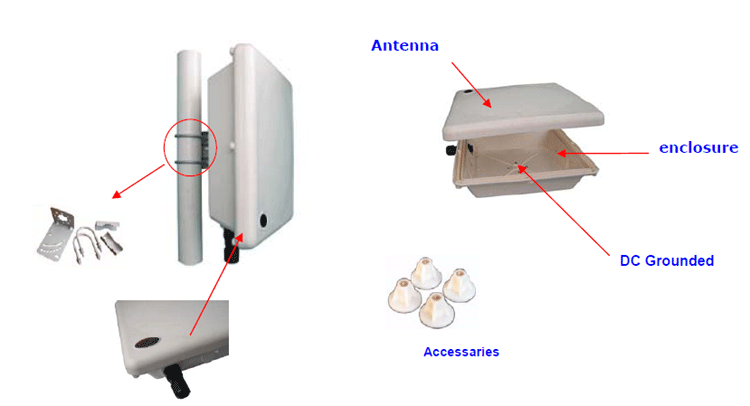

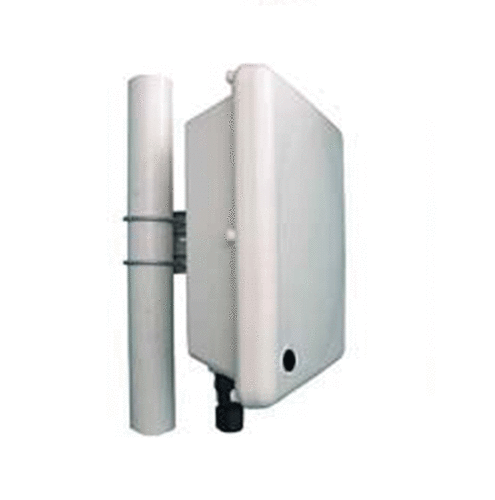

안테나부착형 외장함체(15dB용)
 글쓴이 : 최고관리자
조회 : 1,196

Freq. Range   2400-2483.5 MHz
Bandwidth        83.5 MHz
Gain                   15dBi
Horizontal Beamwidth 30º
Vertical Beamwidth 30º
F/B ≥28 dB
VSWR <1.5
Nominal Impedance 50 Ω
Polarization Horizontal or Vertical
Max Power 100 W
Connector SMA Female
Antenna Dimension      315x315x110 mm
Inside Dimension           250x250x70mm
Weight    2 kg
