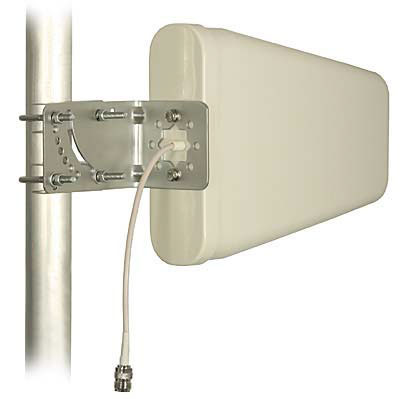

Applications * LTE/CDMA800/GSM/3G/WLAN/Wimax * Wireless communications and data transmission system, Repeater * Indoor and outdoor directional coverage Features * Broad band, Stable performance * Low VSWR, High gain * Support the popular communications system currently * Sealed with radome, Strong protection ability * Supplied with down-tilt bracket kit

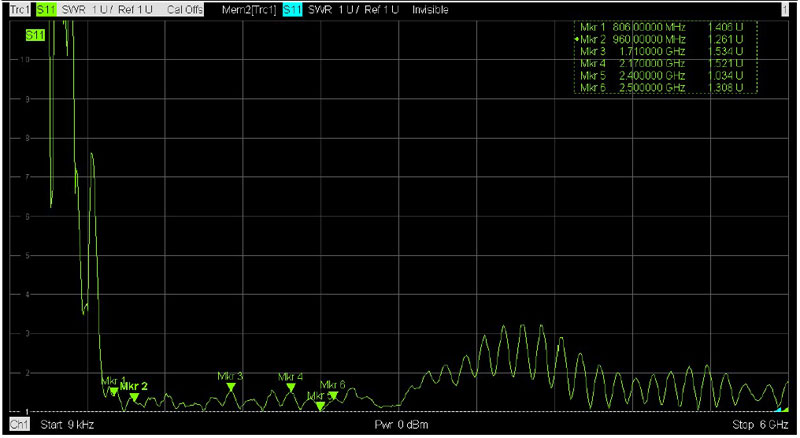

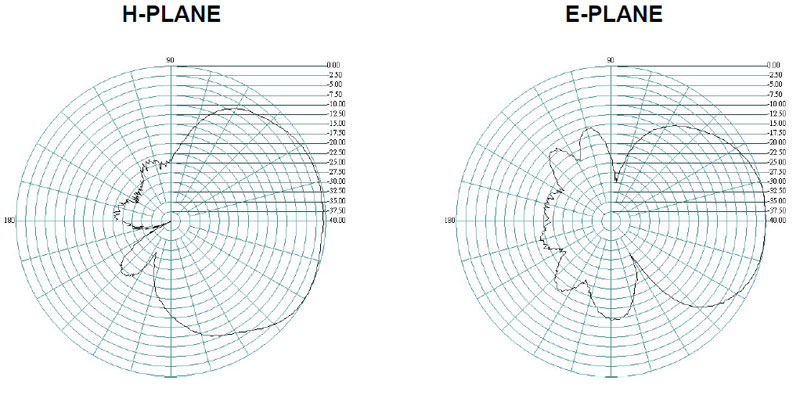

Specifications Model   Freq.Range-MHz 698～800 800～960 1700～2700 Gain-dBi 7.5 8.5 10 Hor.Beamwidth-° 85 85 60 Ver.Beamwidth-° 65 60 50 F/B Ratio-dB ≥15 ≥20 ≥20 VSWR ≤1.5 Impedance-Ω 50 Polarization Vertical Max.Power-W 100 Connector N Female or customized Dimension-mm 293×210×65 Weight-Kg 0.92 Mast Diameter-mm Φ40～50 Note: When installing, you should make the side with a little hole face down to prevent the radome from raining.
