| Applications |
* 698~960/1710~2700MHz Band
* Indoor coverage system
* Wireless communication system
* Wireless data transmission
* TDD/FDD-LTE | |
| Features |
* 698~960/1710~2700MHz band
* Low VSWR
* Support current main popular communication system

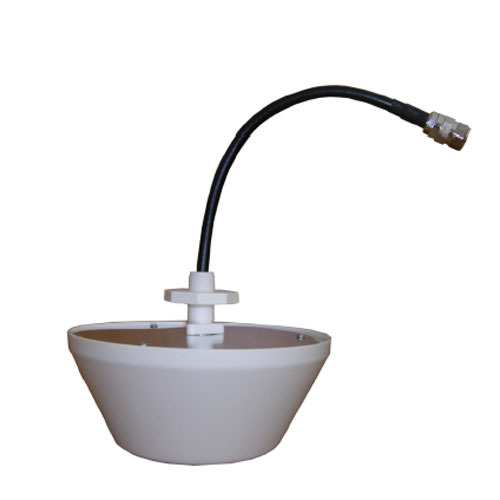

* ABS Radome
* Ceiling mount,easy to install
| | |
|
Specifications |
| Model |
|
| Freq.Range-MHz |
698～960 |
1700～2700 |
| Gain-dBi |
2 |
5 |
| Hor.Beamwidth-° |
360 |
| VSWR |
698～806 ≤2.5
806～960/1710～2500≤1.5
2500～2700 ≤2.0 |
| Impedance-Ω |
50 |
| Polarization |
Vertical |
| Max.Power-W |
100 |
| Connector |
N Female or customized |
| Dimension-mm |
φ170×72 |
| Weight-Kg |
0.4 |
| Mounting way |
Fixed with Nut | | |
|
